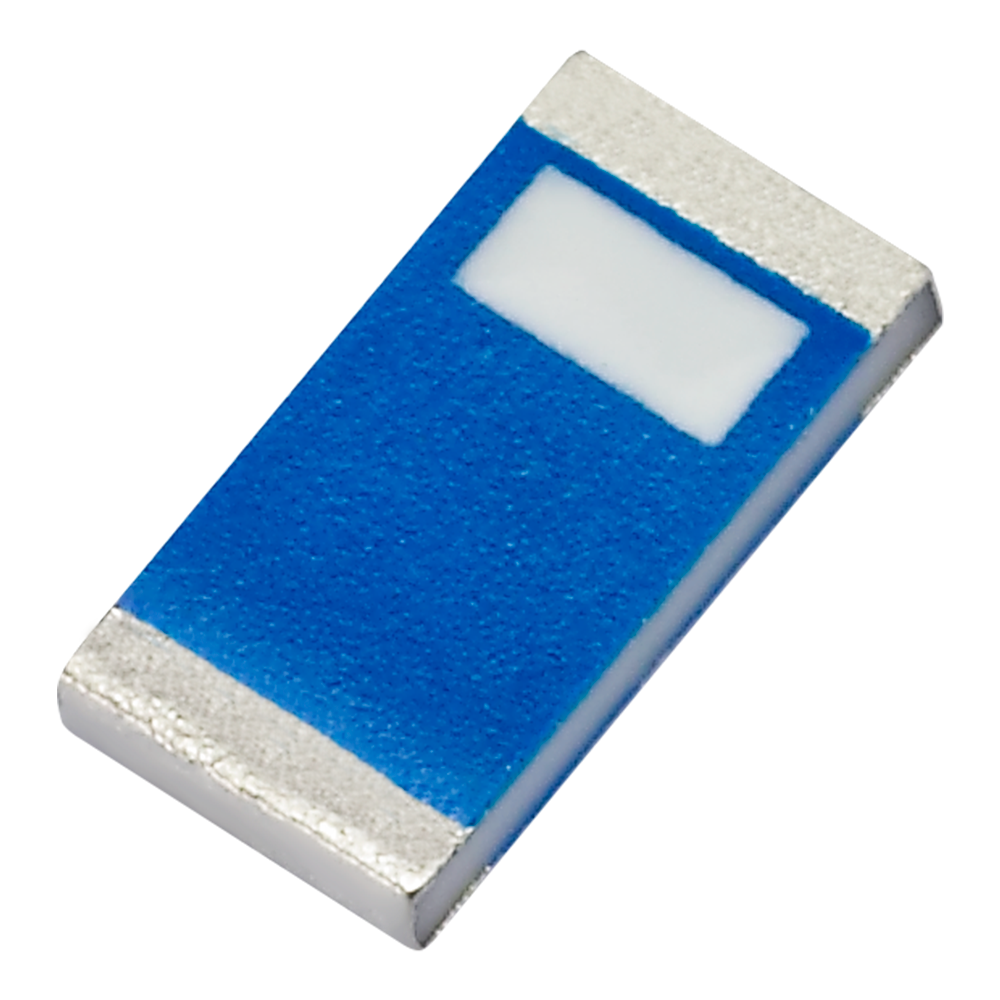

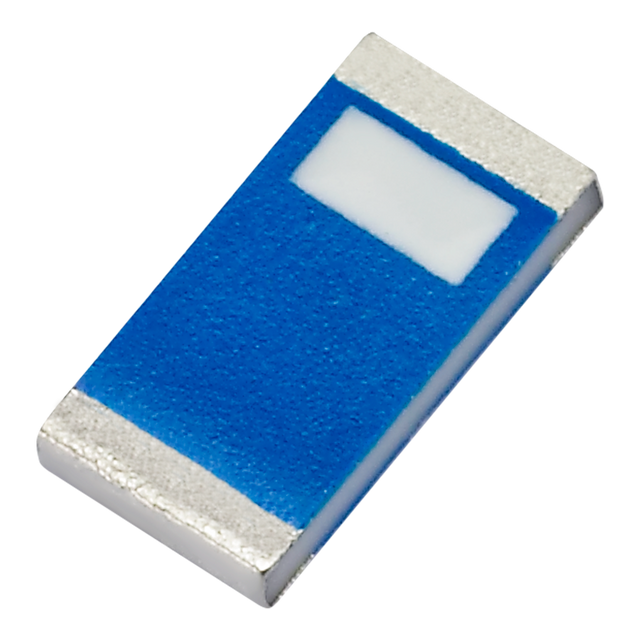

WLA.10 Wi-Fi chip Antenna SMD/SMT

This miniature dual-band antenna is designed for high-efficiency Wi-Fi 2.4GHz and 5.8GHz applications where PCB space is limited. Its low-profile, edge-mounted ceramic loop design makes it ideal for integration into handheld devices, tablet PCs, wireless remote controls, and specialized control systems. The antenna uses the main PCB as its ground plane, ensuring stable efficiency across both bands for maximum data throughput. It can be easily tuned for different PCB sizes by adjusting the matching circuit, and multiple antennas can be integrated for MIMO performance. Delivered on tape and reel, this antenna is suitable for high-volume manufacturing and compact device designs.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Loop
Location: Internal
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single

Connection 1 - Wi-Fi Dual-Band

Frequency: 2.4/5.8GHz
Impedance (Ohm): 50
VSWR: <2.1
Gain (Max): 2.17 dBi
Polarity: Linear
Mechanical Style: Chip
Dimensions (mm): 3.2 x 1.6 x 0.5
