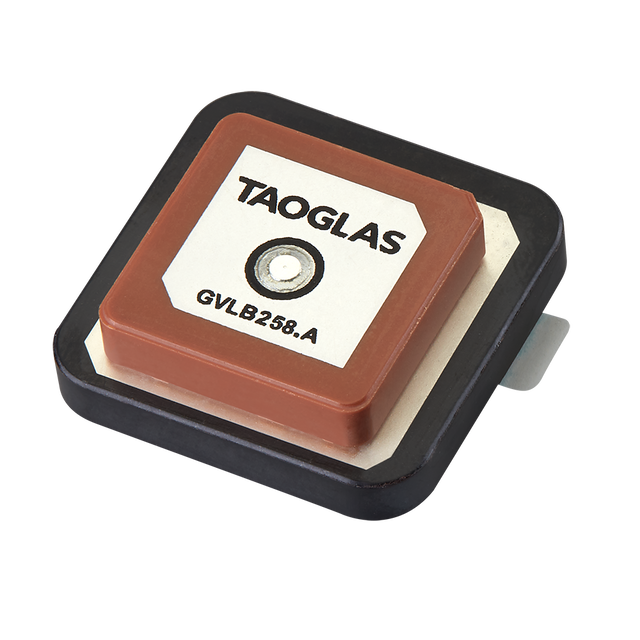

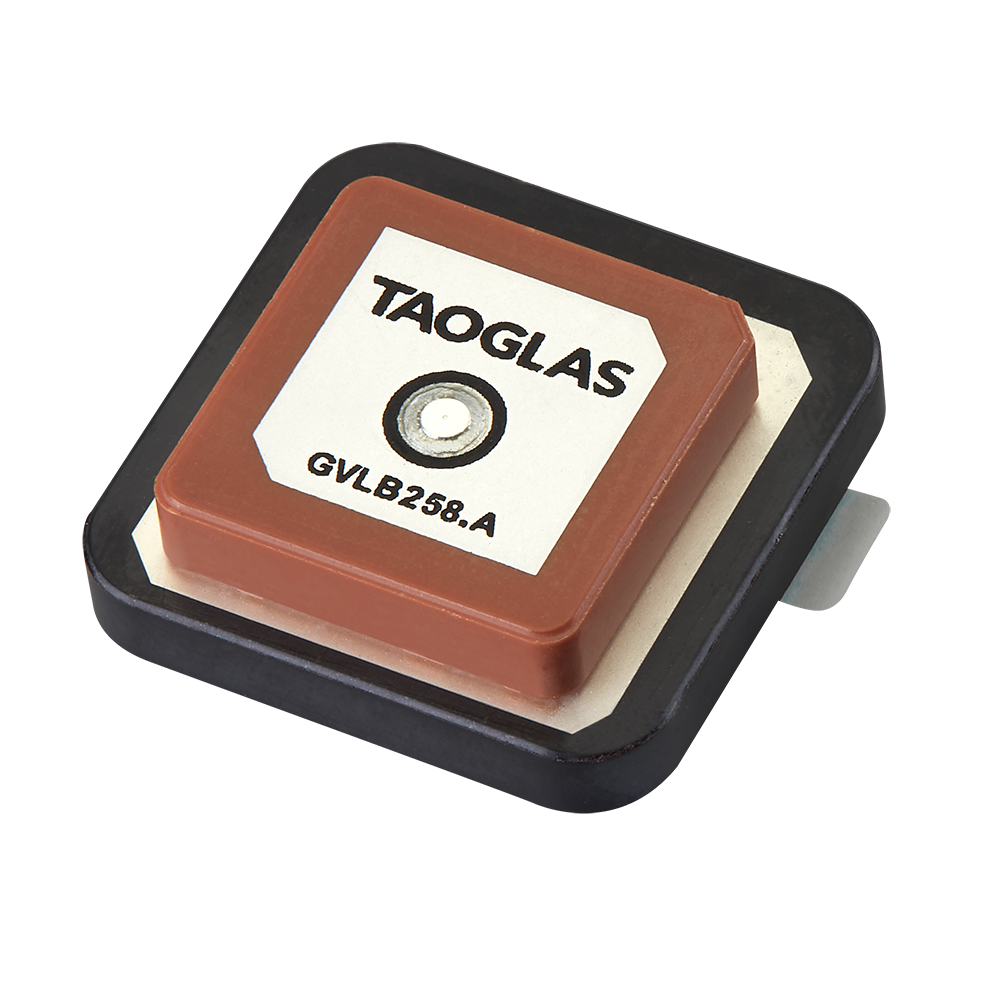

GVLB258.A GNSS patch Antenna Pin/Adhesive Mount

This high-performance dual-band GNSS antenna is designed for applications requiring precise positioning and fast signal acquisition. Utilizing an advanced stacked ceramic patch design, it supports GPS L1/L5, Galileo, GLONASS, BeiDou, and IRNSS bands, making it ideal for RTK, wearables, transportation, agriculture, navigation, security, and autonomous vehicles. The antenna is optimized for use on a 70 x 70 mm ground plane and delivers excellent radiation patterns for next-generation L1/L5 GNSS receivers. Custom tuning for specific device environments is available upon request.

Connections

Single Feed Stacked Patch Assembly
GPS L1 & L5
BeiDou B1/B2a
Galileo E1 & E5a
GLONASS G1
IRNSS L5

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS Dual-Band

Frequency: 1160MHz - 1610MHz
Supported Bands: GPS L1/L5, BeiDou B1/B2a, Galileo E1/E5a, GLONASS G1, IRNSS L5
Impedance: 50 Ohm
VSWR: <2
Polarity: RHCP
Gain (Max): 3.08 dBi

Download Datasheet PDF
