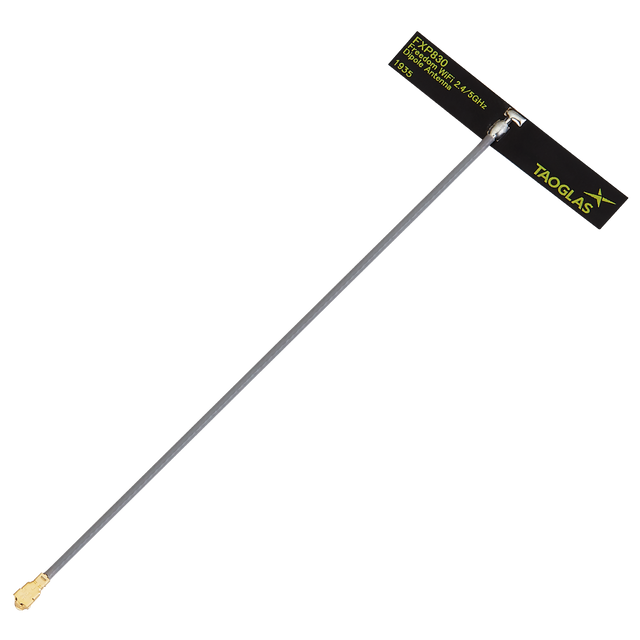

FXP830.07.0100C Wi-Fi 6E/7 flex PCB Antenna I-PEX MHF I (U.FL) 10cm

This high-efficiency, flexible dipole antenna is designed for Wi-Fi 6/6E/7 and Bluetooth applications, covering the 2.4, 5.8, and 7.1 GHz bands. Its ultra-compact, poly-flexible form factor and double-sided 3M tape make it ideal for easy peel-and-stick installation in tight spaces, such as at the top of LCD devices. The antenna operates independently of ground plane, ensuring consistent performance across various device integrations. It is an excellent choice for future-proofing IoT devices, offering reliable connectivity for both current and next-generation wireless standards.

Connections

Wi-Fi 2.4/5.8/7.1GHz, Wi-Fi 6/6E/7, Bluetooth

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL)
• Cable Length: 10cm
• Cable Type: 1.37 Coax

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single

Connection 1 - Wi-Fi 6E/7, Bluetooth

Frequency: 2.4/5.8/7.125 GHz
Impedance (Ohm): 50
VSWR: <2.5:1
Gain (Max): 4.7 dBi
Polarity: Linear
Mechanical Style: Flex PCB
Mounting Style: Adhesive
Dimensions: 42 x 7 x 0.5 mm
Weight: 7 g
