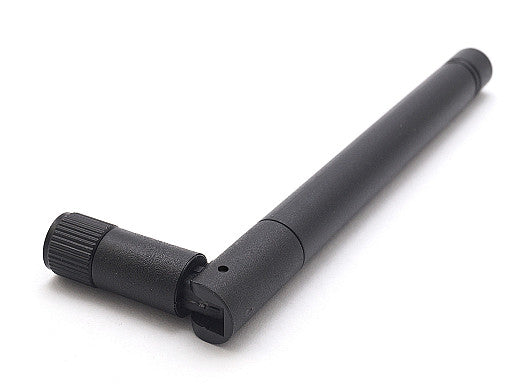

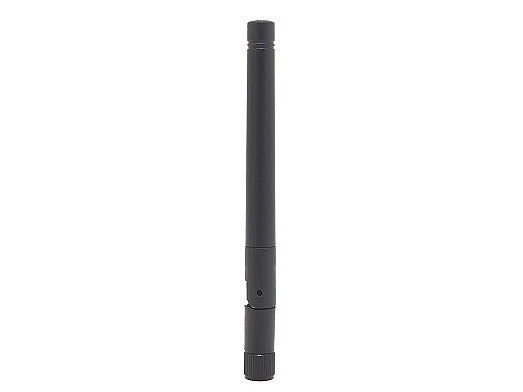

2JW0315-915-C675B ISM connector mount Antenna

This high-performance antenna is designed for reliable operation in the 915 MHz ISM band, supporting a wide range of IoT and industrial applications. Its dipole design ensures ground plane independence and stable performance, while the hinged connector allows for flexible installation in various environments. Ideal for smart home, industrial IoT, asset tracking, and other wireless communication systems requiring robust and efficient connectivity.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.3:1
Efficiency (%): ~52
Peak Gain (dBi): ~1.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
