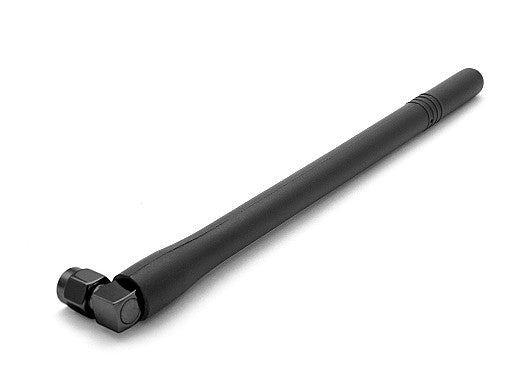

2JW0415-433-C109B 433MHz ISM connector mount Antenna Right-Angle

This high-performance antenna is designed for reliable operation in the 433 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its monopole design and ground plane dependence ensure efficient signal transmission, while the flexible rod and right-angle connector provide easy installation in space-constrained environments. The antenna is suitable for a wide range of industries, including transportation, healthcare, logistics, and automation.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.0:1
Efficiency (%): ~82.8
Peak Gain (dBi): ~2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 35
