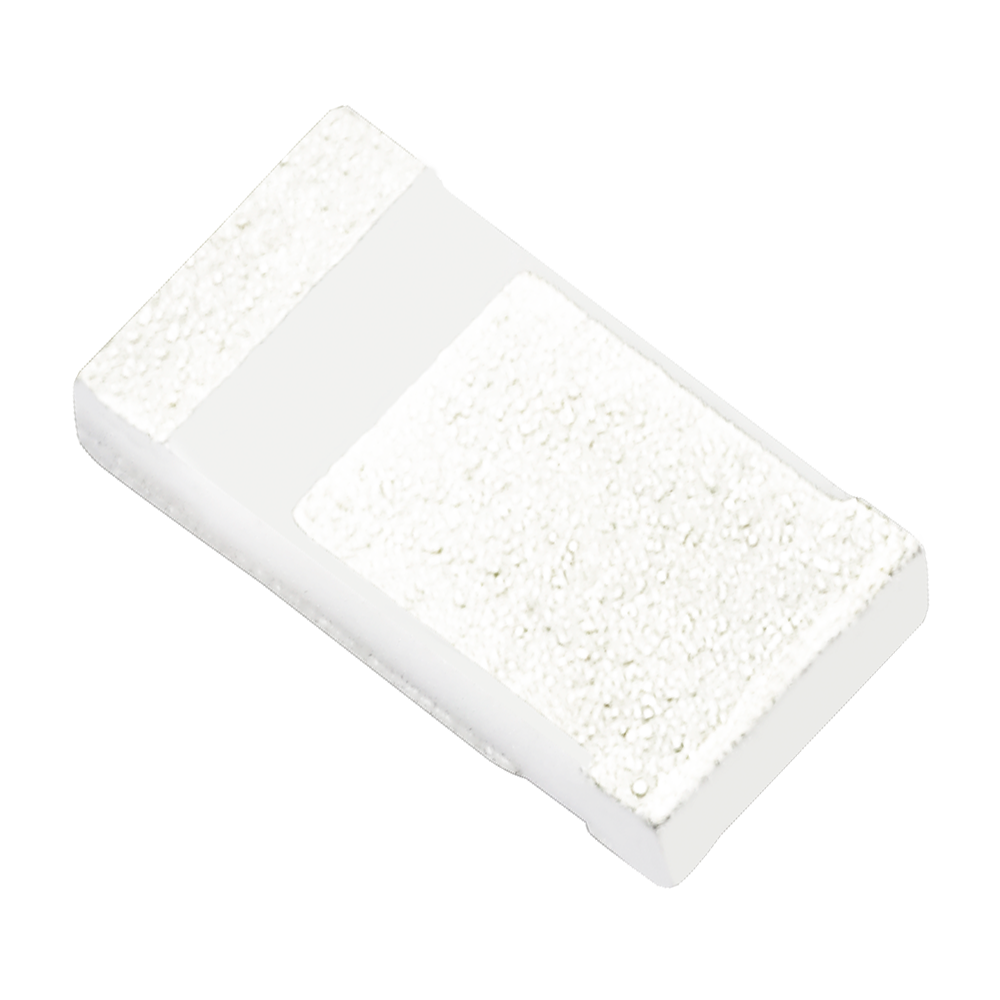

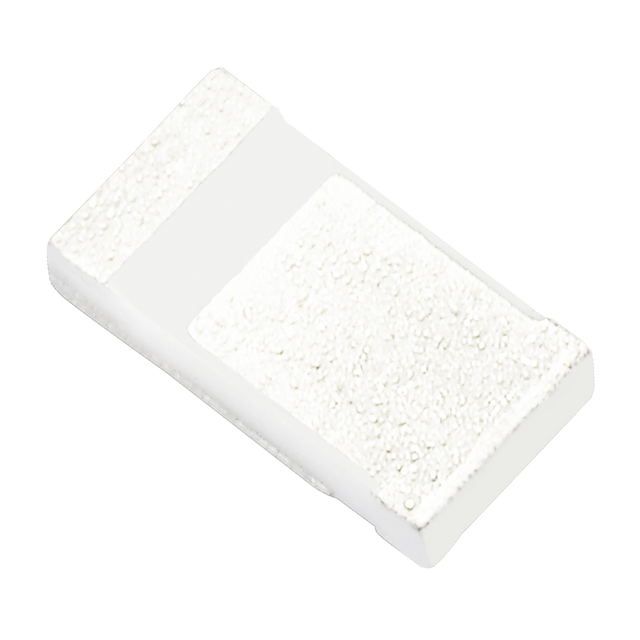

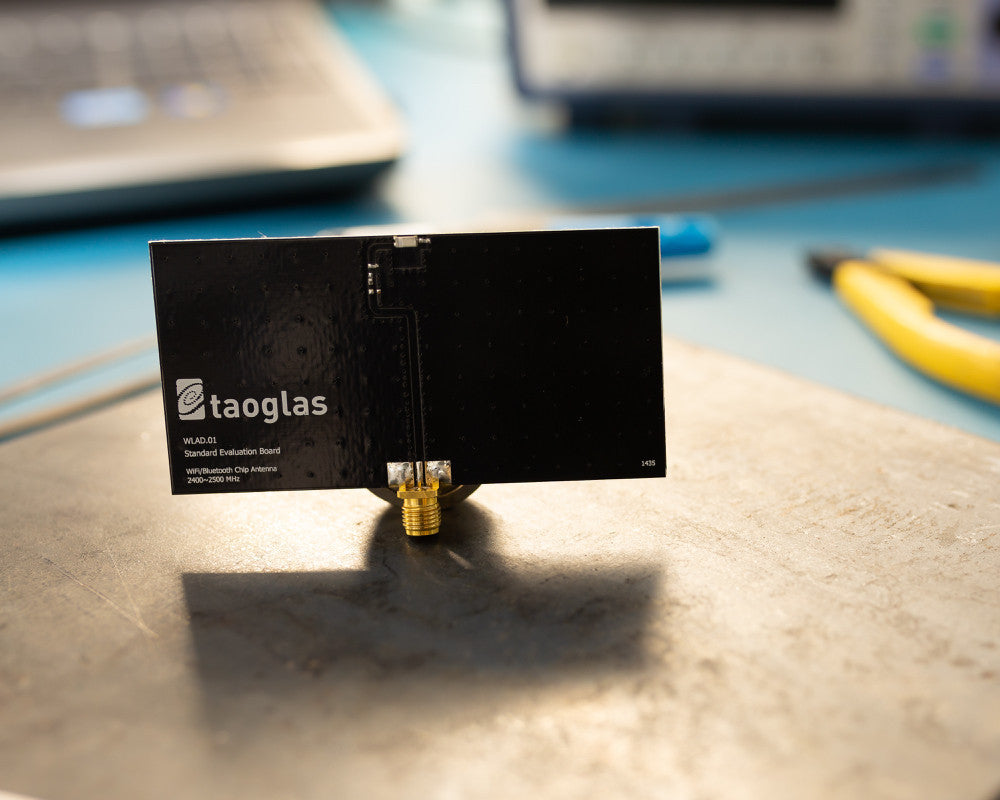

WLA.01 Wi-Fi, ISM chip Antenna SMD/SMT Mount

This ultra-compact antenna is designed for high-efficiency wireless connectivity in space-constrained devices. Its 2.4GHz loop design delivers reliable performance for Wi-Fi, WLAN, Bluetooth, and ZigBee applications, making it ideal for integration into small electronics where PCB space is at a premium. The antenna leverages the device's main PCB as its ground plane to maximize efficiency and can be easily tuned for different board sizes by adjusting the matching circuit. Delivered on tape and reel, it is suitable for high-volume manufacturing and ensures compliance with regulatory peak gain limits when properly integrated.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Loop
Location: Internal
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single

Connection 1 - Wi-Fi/ISM

Frequency: 2.4GHz
Impedance (Ohm): 50
VSWR: 1.5:1
Polarity: Linear
Gain (Max): 1dBi
Mechanical Style: Chip
Dimensions (mm): 3.2 x 1.6 x 0.5
