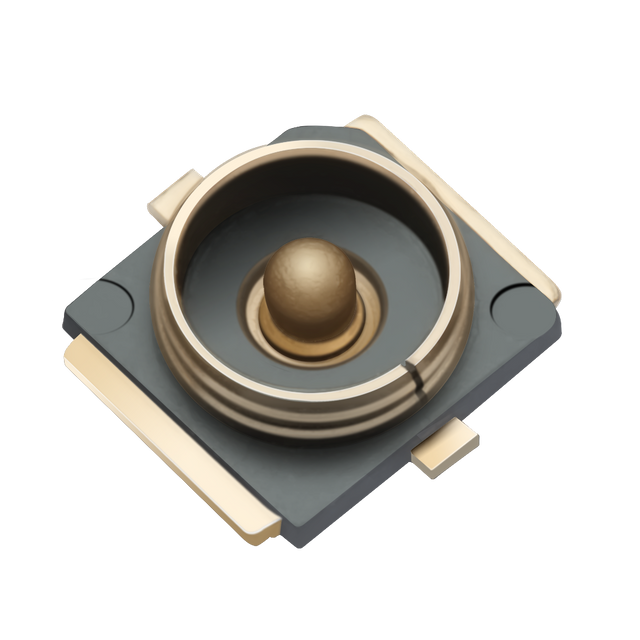

RECE.20449.001E.01 IPEX MHF4 SMD mount Receptacle

This ultra-small, lightweight, and low-profile SMD mount receptacle is designed for seamless integration with I-PEX MHF4, I-PEX MHF4L, and Murata HSC connectors. With a maximum mating height of 1.2mm and operational frequency range up to 8 GHz, it ensures reliable high-frequency performance for a variety of wireless applications. The gold-plated contacts provide superior conductivity and durability. Ideal for use in GSM modules, GPS modules, and Wireless LAN modules, as well as next-generation 5G cellular applications. Packaged on tape and reel, it is optimized for automatic pick-and-place assembly in high-volume manufacturing environments.

Technical Specifications

Impedance: 50 Ohm
Connector Type: IPEX MHF4
Mounting: SMD/SMT Mount
Frequency: DC to 8 GHz
Number of Ports: 1
Housing Color: Gold
