RECE.20279.001E.01 SMD Mount Receptacle IPEX MHFI (U.FL)

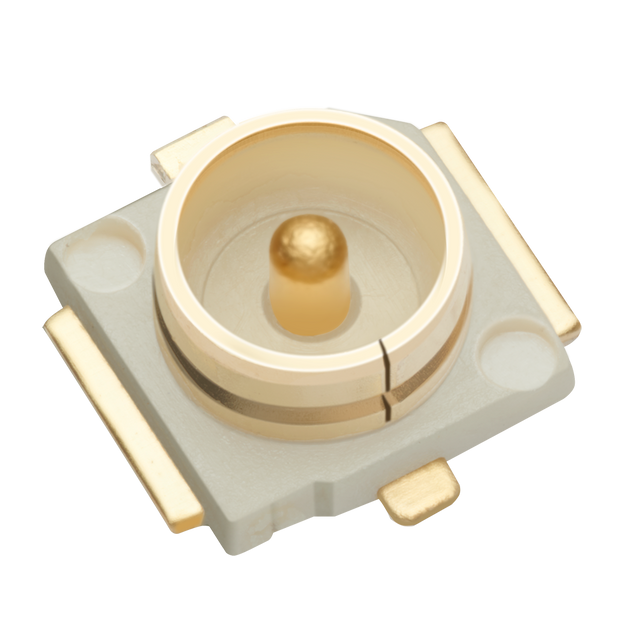

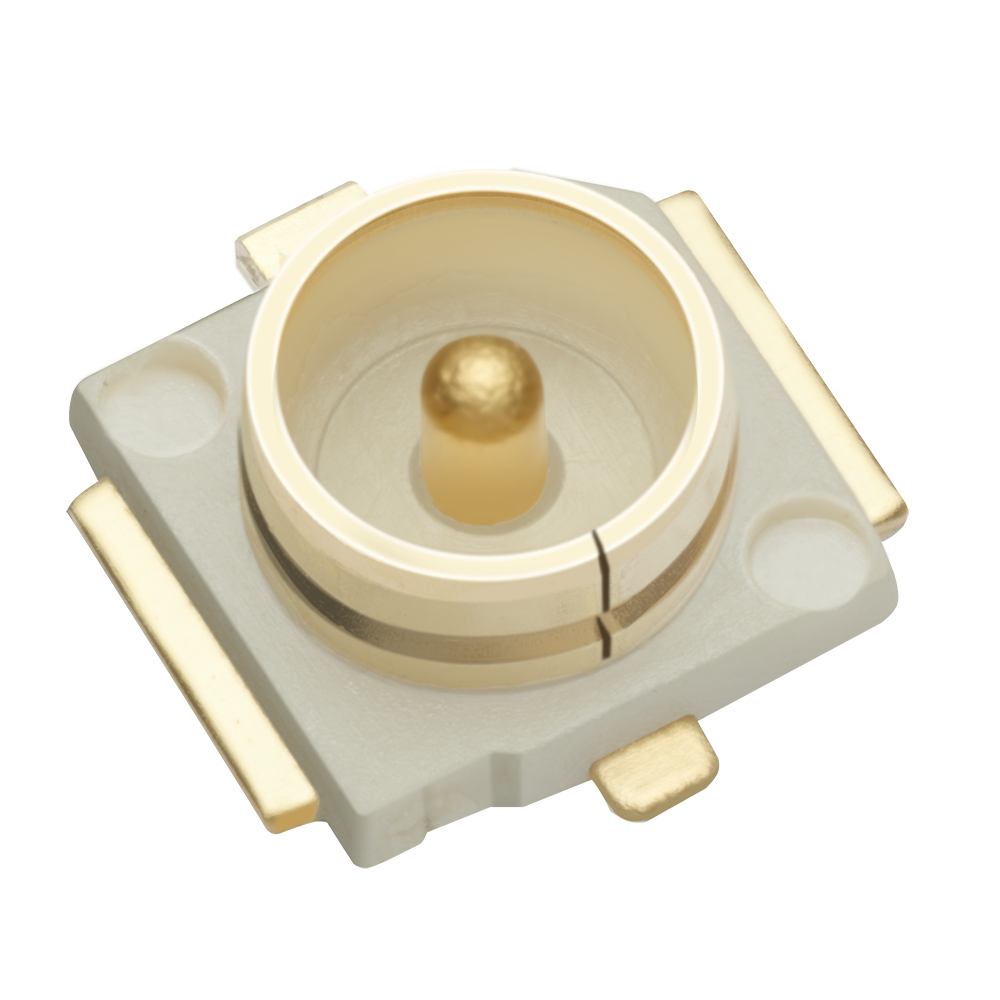

This ultra-small, lightweight, and low-profile SMD mount receptacle is designed for seamless integration onto PCBs. With a maximum mating height of 3mm and gold plating for superior performance, it ensures reliable RF connections in compact designs. The receptacle is compatible with I-PEX MHFI, I-PEX MHFII, I-PEX MHFHT, Hirose U.FL, UMC, and all other U.FL compatible connectors. It is supplied on tape and reel for efficient automatic pick-and-place assembly, making it ideal for high-volume manufacturing. Commonly used in cellular, GPS, and wireless LAN modules, this receptacle provides a robust 50 Ohm transmission line between micro-miniature RF connectors and the PCB.

Technical Specifications

Impedance (Ohm): 50
Mounting: SMD/SMT Mount
Type: Single
Connector Type: IPEX MHFI (U.FL)
Number of Ports: 1
Frequency - Max (MHz): 8000

Download Datasheet PDF
