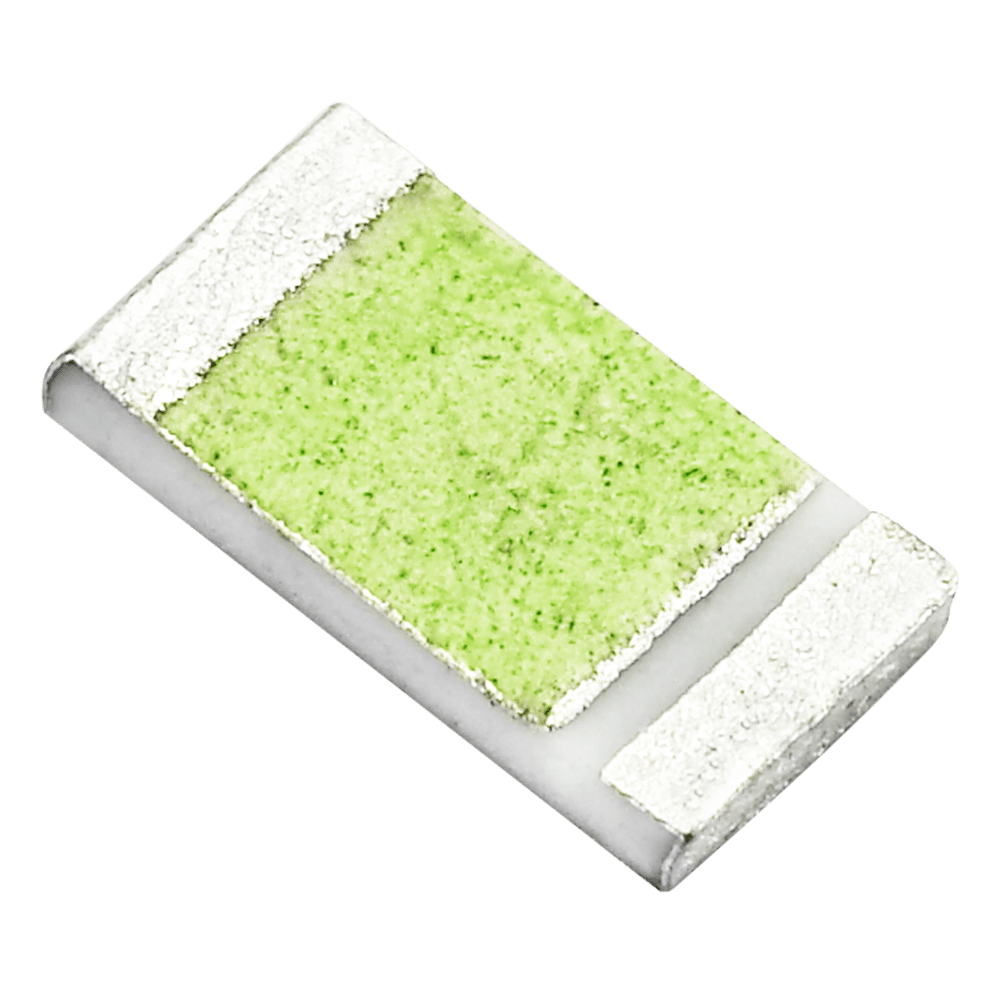

GGBLA.01.A GNSS chip Antenna SMD/SMT Mount

This miniature chip antenna is designed for GPS, GLONASS, Galileo, and BeiDou applications, offering high efficiency and stable reception across the L1 band. Its compact size makes it ideal for small devices such as automotive navigation systems, position tracking systems, and handheld electronics where GNSS functionality is required. The omnidirectional radiation pattern ensures reliable performance regardless of device orientation, and the antenna is compatible with standard SMD/SMT assembly processes. Delivered on tape and reel, it is suitable for high-volume manufacturing and integration into space-constrained designs.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Loop
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Frequency: 1559MHz - 1610MHz
Standards: GPS, GLONASS, Galileo, BeiDou (L1)
Impedance (Ohm): 50
VSWR: 2
Gain (Max): 3.3dBi
Polarity: Linear
Mechanical Style: Chip
Dimensions (mm): 3.2 x 1.6 x 0.5
Weight (g): 0.1
