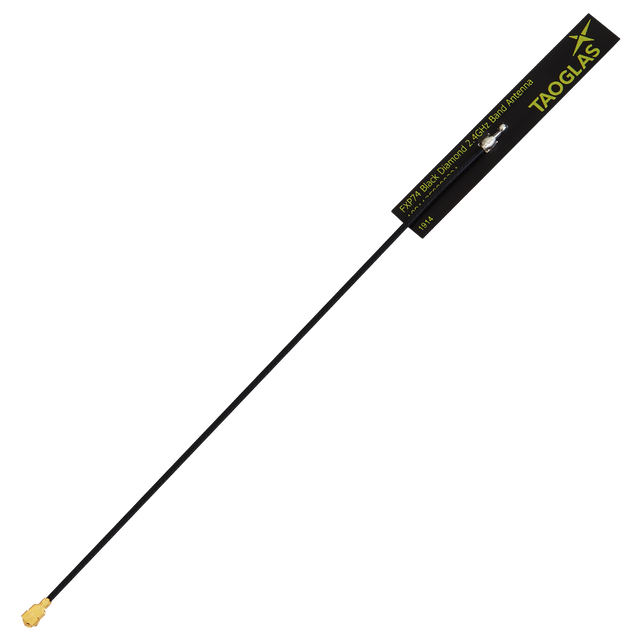

FXP74.07.0100A Wi-Fi, ISM flex PCB Antenna Black Diamond U.FL 10cm

The FXP74 Black Diamond is an ultra-low profile, flexible PCB antenna designed for 2.4GHz applications including Wi-Fi, Bluetooth, and ZigBee. Its compact size and flexible polymer construction make it ideal for integration into narrow spaces within devices such as LCD monitors, tablets, smartphones, and small routers. The antenna features robust peel-and-stick mounting with double-sided 3M tape, ensuring easy installation and reliable performance. With a peak gain of 4dBi and efficiency above 50%, it delivers stable wireless connectivity across a variety of environments. This antenna is an excellent solution for embedded wireless applications where space is limited and high performance is required.

Connections

2.4GHz Wi-Fi/Bluetooth/ZigBee

Connector & Cable

• Connector Type: U.FL
• Cable Length: 10cm
• Cable Type: 1.13 Coax

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Flex PCB
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single

Connection 1 - 2.4GHz Wi-Fi/Bluetooth/ZigBee

Frequency: 2.4GHz
Impedance (Ohm): 50
VSWR: 2:1
Peak Gain (dBi): 4
Efficiency (%): 50
Polarization: Linear
Dimensions (mm): 47 x 7 x 0.1
