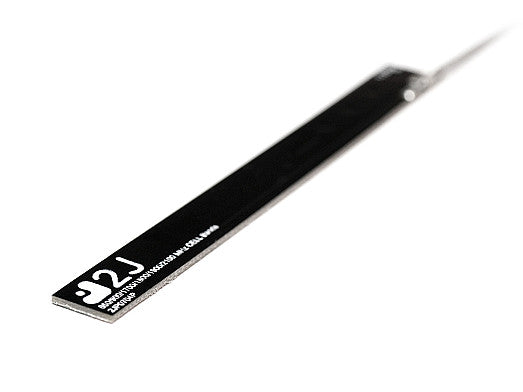

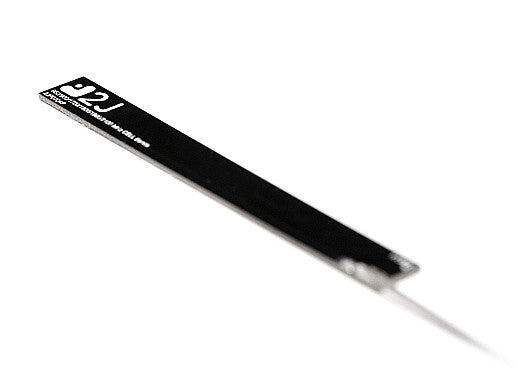

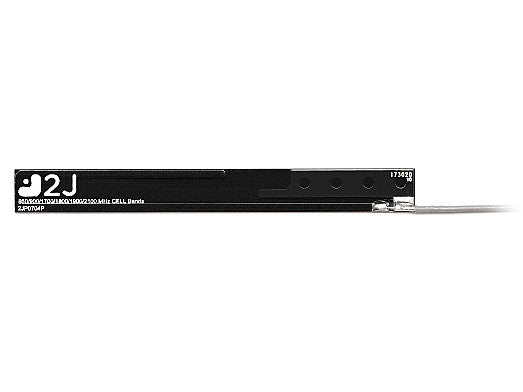

2JP0704P 3G, 2G cellular Antenna adhesive mount rigid customizable

This high-performance internal antenna is designed for reliable 3G and 2G cellular connectivity in a compact, rigid form factor. Its ground plane independence and self-adhesive mounting make it ideal for integration into a wide range of devices, including consumer electronics, robotics, wearables, asset tracking, and telematics. The customizable cable and connector options allow for flexible installation tailored to your specific application needs. Benefit from stable performance and easy integration in environments where internal mounting is required.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Rigid
Location: Internal
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.5:1, ~1.7:1
Efficiency (%): ~32.6, ~39.1
Peak Gain (dBi): ~-1.3, ~-1.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
